1205M-5606 36-48V 500A for CURTIS Programmable DC Series PMC Motor Controller - New

Regular price
$229.99
Sale price
$185.99
1205M-5606 36-48V 500A for CURTIS Programmable DC Series PMC Motor Controller - New
  • Fast Shipping

    Free for all orders in USA. 6-10 business days.

  • 24/7 Support

    Fast response & professional support

  • Wholesale Discounts

    Greater prices for bulk orders

  • 1-Year Warranty

    Hassle-free coverage for product defects

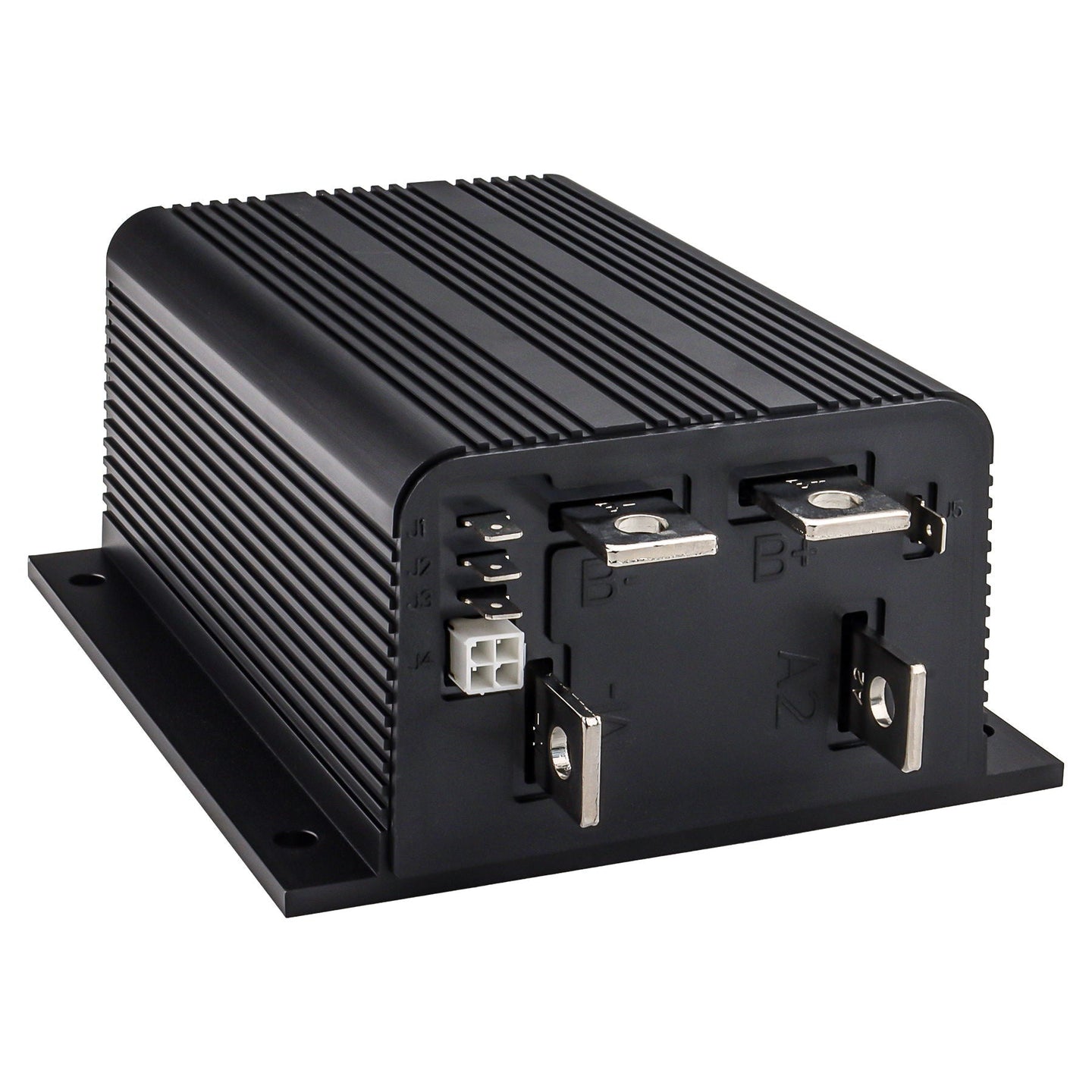

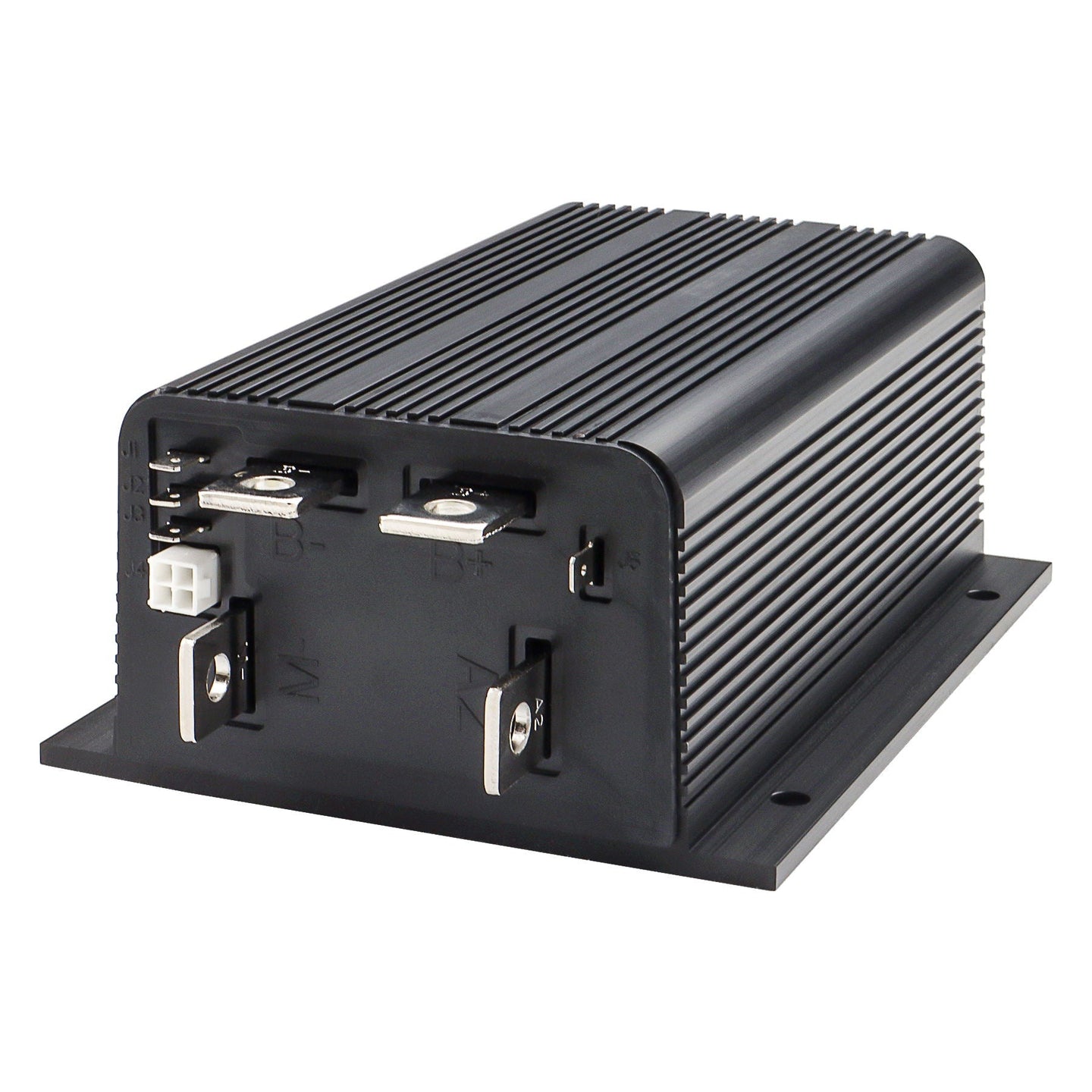

For CURTIS DC Series Motor Speed Controller

Model: 1205M-5606

Voltage: 36/48V

Current: 500A

AttentionBefore ordering a golf cart controller, please double-check the model number. When placing your order, please consider including the current, voltage and throttle type of your original controller in the note, or we'll contact you for details.



Overview:

The 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. They are updated versions of the popular 1205 controllers, with the added functionality of being programmable—via the 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

The 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the 1204M/05M Manual before making the purchase.

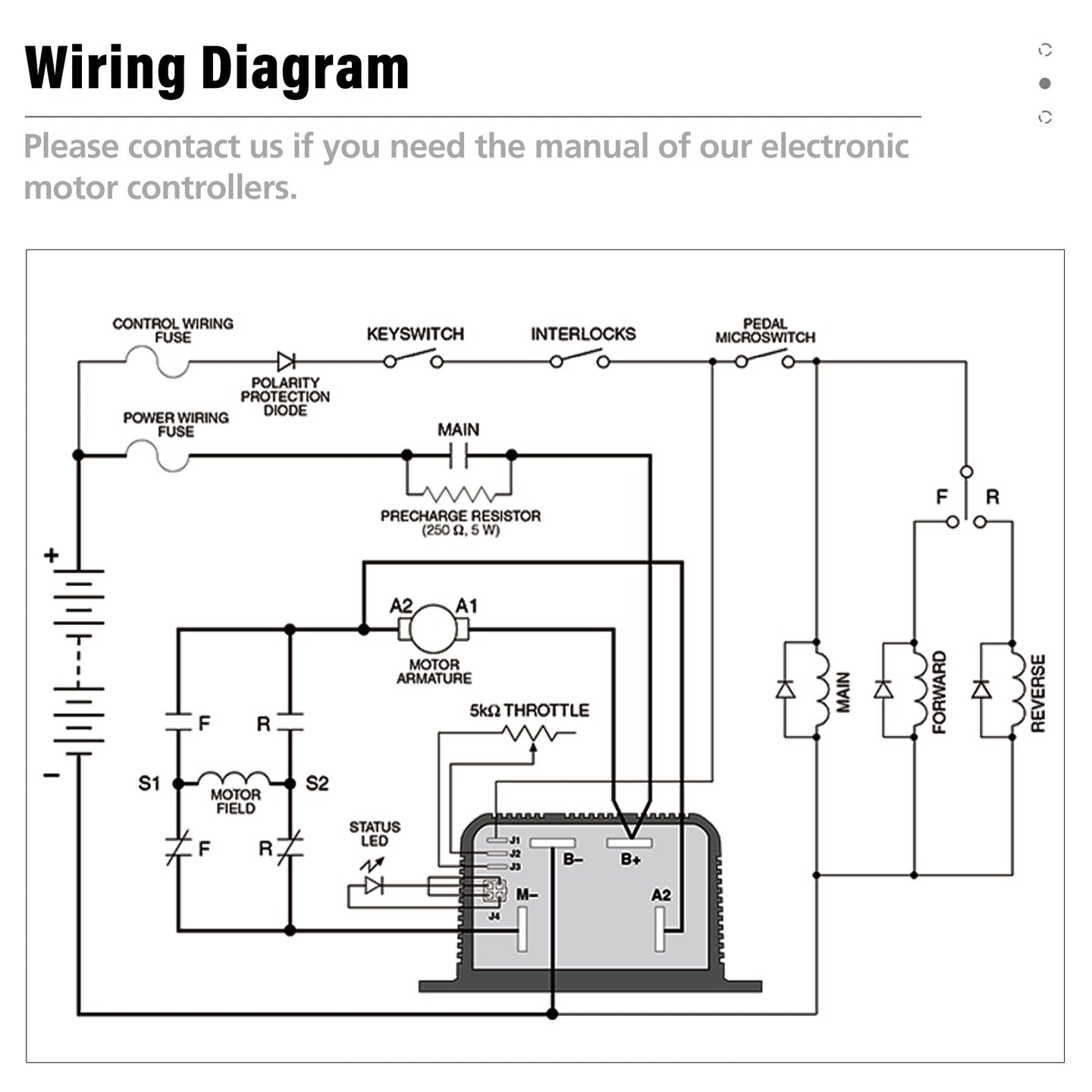

Wiring Diagram:

By default, the J5 terminal of new 1205M controllers is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.

If you want to activate the J5 terminal for using the Rev Input / Main Driver functions, please see the page 7 and 8 of 1204M / 1205M controller manual (PDF format).

Key Features:

  • Compatible Model: 1205M-5606
  • Norminal Battery Voltage (Volts): 36/48V
  • Plug Braking (A2 Busbar): Yes
  • PWM operating frequency: 15.6 kHz
  • Electrical isolation to heatsink (min.): 500 VAC
  • KSI input current (no contactors engaged):
    • 70 mA without programmer
    • 130 mA with programmer
  • Logic input current: < 2 mA
  • Status LED output current (max.): < 2 mA
  • Ten throttle types can be used with these controllers:
    • Type 0: 2-wire potentiometer, 0–5kΩ
    • Type 1: 2-wire potentiometer, 5kΩ–0
    • Type 2: single-ended 0–5V input
    • Type 3: 2-wire potentiometer, 4.6kΩ–0
    • Type 4: 2-wire potentiometer, 5.5kΩ–0
    • Type 5: 2-wire potentiometer, 1kΩ–0
    • Type 6: ITS input
    • Type 7: single-ended 6.3–10.6 V input
    • Type 8: single-ended 6–12 V input
    • Type 9: single-ended 3-wire potentiometer, 0–5kΩ
  • Operating ambient temperature range: -40°C to 50°C
  • Storage ambient temperature range: -40°C to 85°C

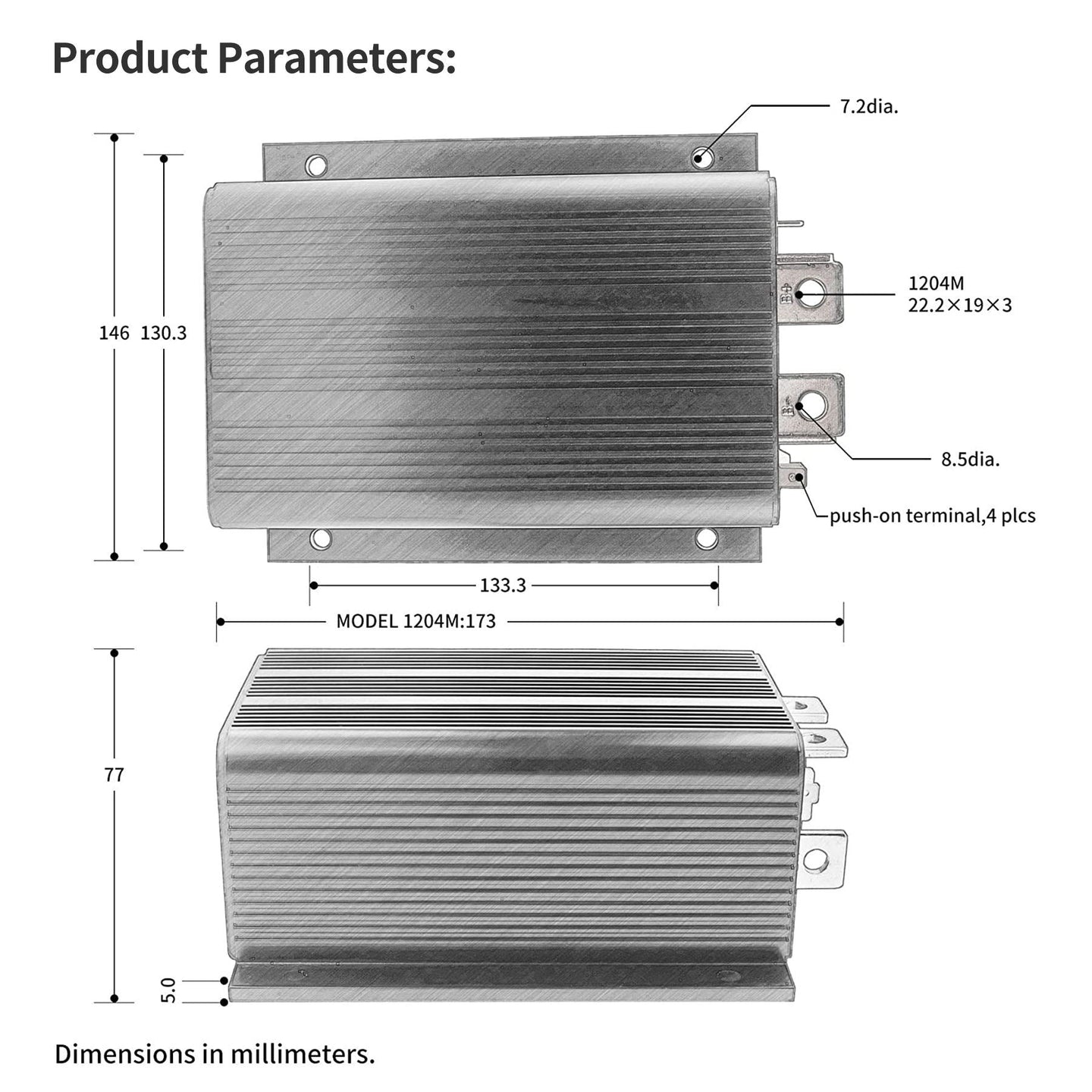

  • Dimensions: L199xW146xH77 mm
  • Net Weight: 2.7 kg
  • Package environmental rating: ISTA 2A; electronics sealed to IP54
  • Regulatory compliance: EN 12895 and EN 61000

Features Include:

  • High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
  • Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
  • Compatible with either a two-wire potentiometer or a voltage throttle.
  • Throttle fault protection circuitry disables controller if throttle wires become open.
  • High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
  • Plug braking diode internal to controller.
  • Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
  • Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
  • Easily programmable through the 1313-4331 Handheld  Programmer for CURTIS or 1314 PC Programming Station.
  • Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
